BareMetal PLC M
BareMetal PLC M Description
Overview
BareMetal PLC M Controller has various powerful features and can service a wide range of applications. The controller has the following interfaces on board: CAN bus, RS485, RS422, RS232, 5 relay outputs, 5 discrete inputs, 5 discrete outputs, USB Device, EEPROM. The main microcontroller is built on the Cortex-M3 core with a clock frequency of 72 MHz.
Hardware description
- Onboard Rlink programmer
- MCU Cortex-M3: 72 MHz
- RAM: 64 Kbytes
- FLASH: 512 Kbytes
- 256K EEPROM
- 5 Relay outputs 55V 1.5A ( Max switch frequency 3Hz )
- 5 Discret Outputs (12-24V 70mA)
- 5 Discret Inputs
- CAN Bus
- RS485
- RS232
- RS422
- USB Device
Functional Diagram

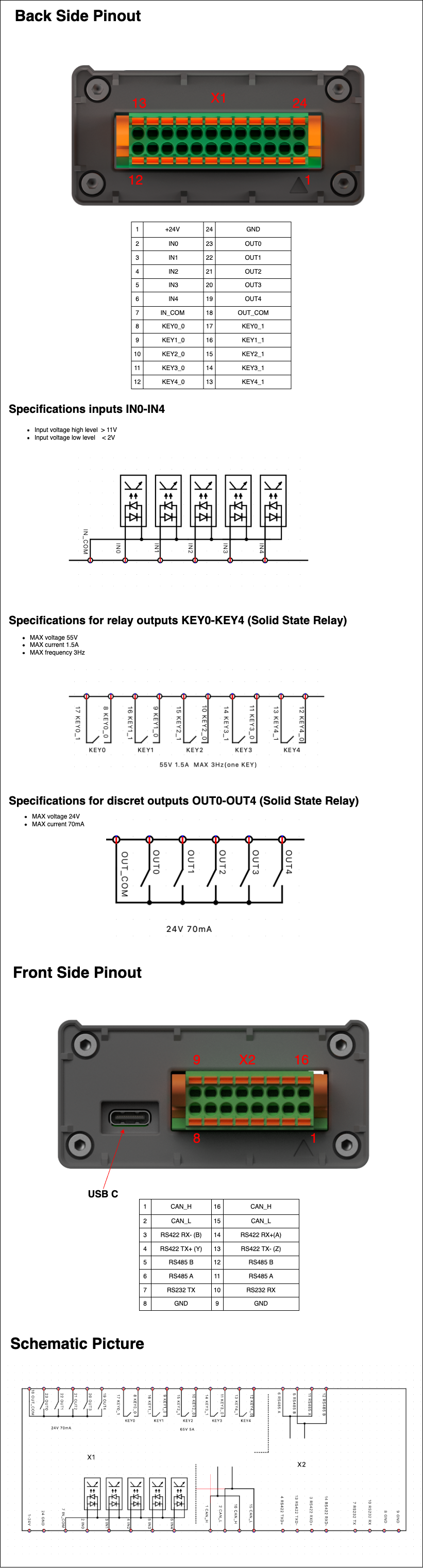

Pinout and symbols

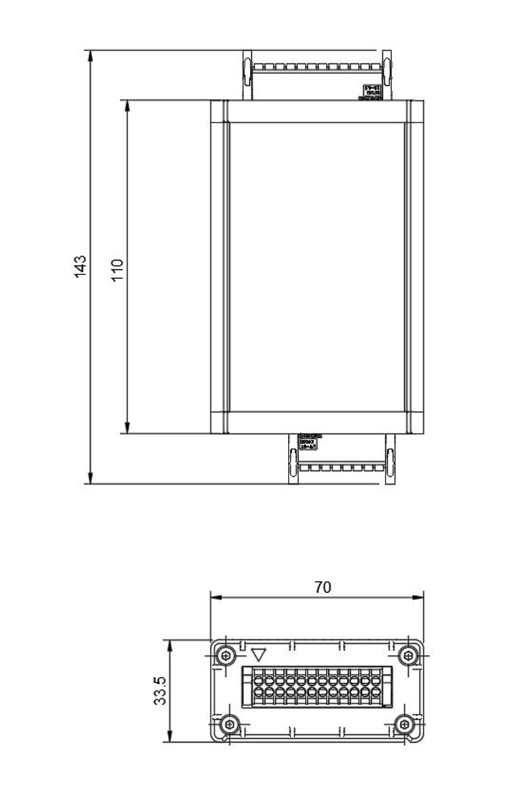

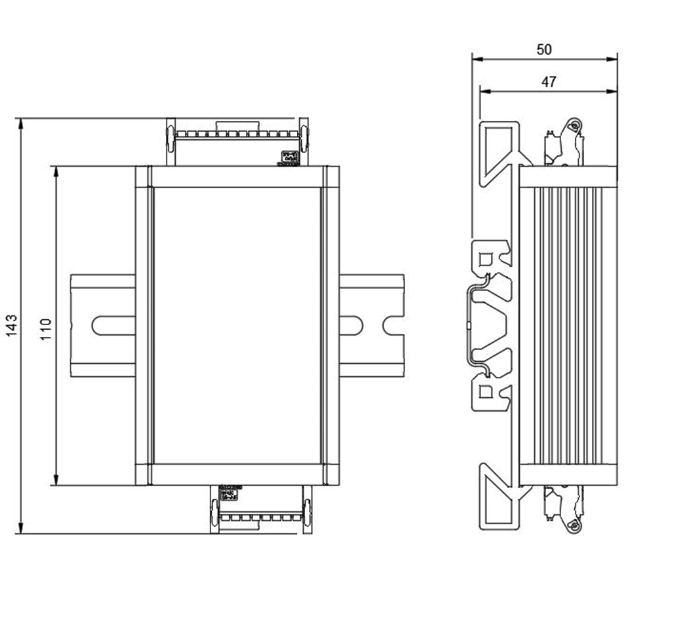

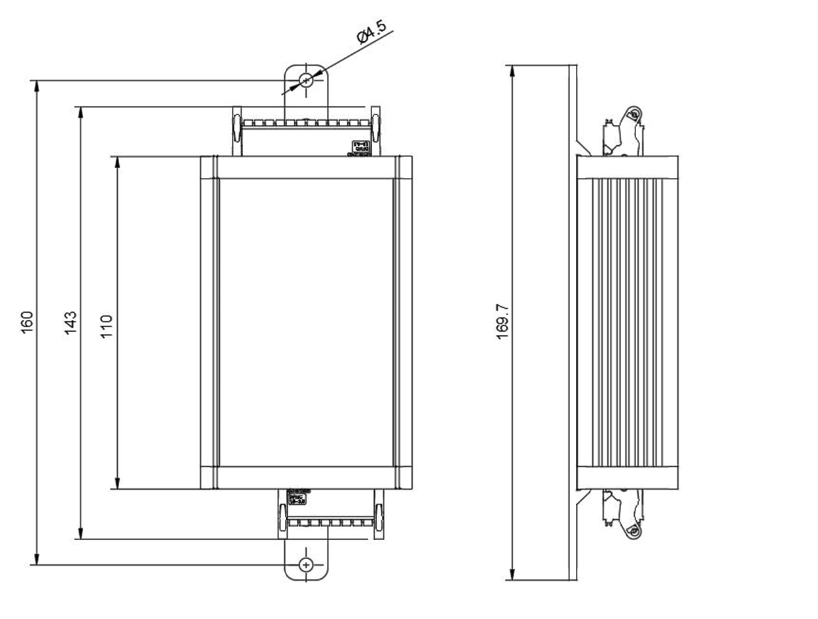

Dimensions
3D model in .stp here
